ENHANCE YOUR ELECTRIC RIDE
The X-9000 Power Kit is compatible with a range of Electric Motorcycles and a range of Motors.
A plug and play kit for the following Electric Motorcycles:
- SurRon Light Bee
- SurRon Ultra Bee
- Talaria MX3 / MX4
The Kit you purchase from us will contains all the parts needed for an OEM Replacement with the X-9000.
This Kit is a direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
*Please note all X-9000 sent from 28 Nov 2023 will be Version 2; the old style of heatsink(V1) will not fit on a V2 Controller*
The current list of Motors that the X-9000 is compatible with is below:
- OEM SurRon Light Bee
- OEM SurRon Ultra Bee
- OEM Talaria Sting MX3
- OEM Talaria Sting R MX4
- EBMX XLB-60
- EBMX XUB-80
- KO RS SurRon
- KO F Spec SurRon
- KO F Spec Talaria
- QS138 – 90H
- QS138 – 70H
We are currently tuning the following Motors and will update the above list as each motor is fully tested and available to choose on the EBMX app.
- Sotion FW01
- Sotion Talaria
- Apollo RFN
- ME1803 water cooled
- QS Braaap Moto E Hub Motor
EBMX combine strenuous in-house R&D and collaborations with industry experts to bring you the ultimate Electric Motor Controller. The X-9000 has been purpose built with dirt bike riders in mind.
Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction.
Whether you are trying to nail a wheelie, riding hard enduro, competing in a race series, commuting to work, or just cruising the trails with your family the X-9000 is built to give you ultimate freedom and control.
- Custom EBMX App for tuning and full control (Available free in the App Store and Google Play Store)
- Multiple power modes and full adjustment in each mode
- Adjustable speed limits for different ride modes

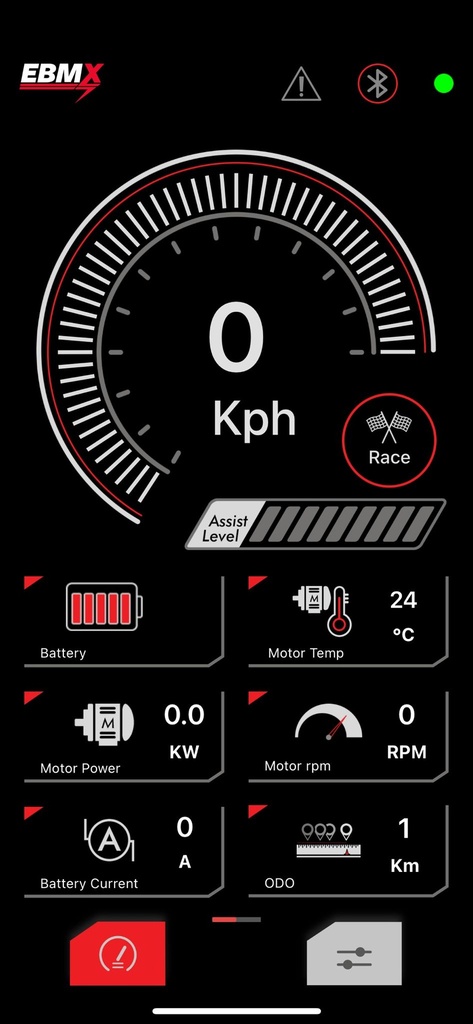

- Customizable dashboard to set the display up how you want

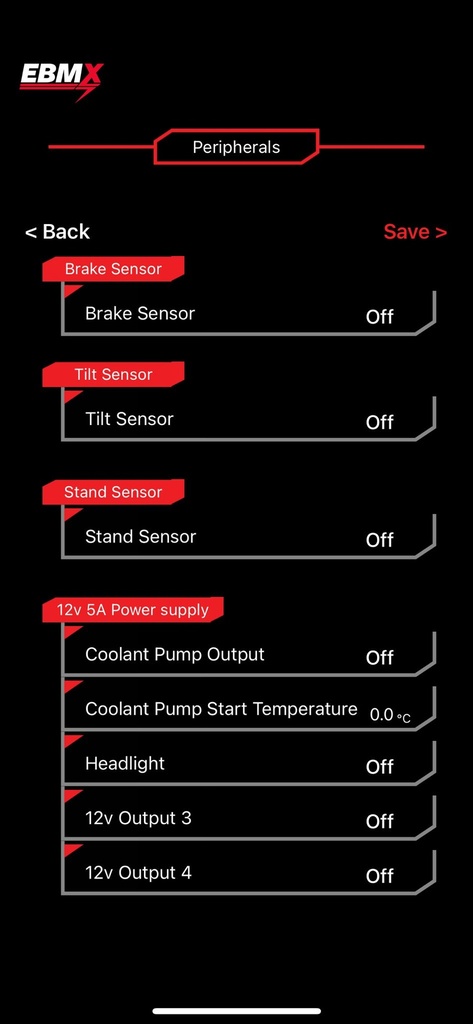

- Built in and programmable DC/DC Converter with 4 programmable 12v outputs for running a coolant pump, headlights and other 12v accessories as required and controllable through the app.

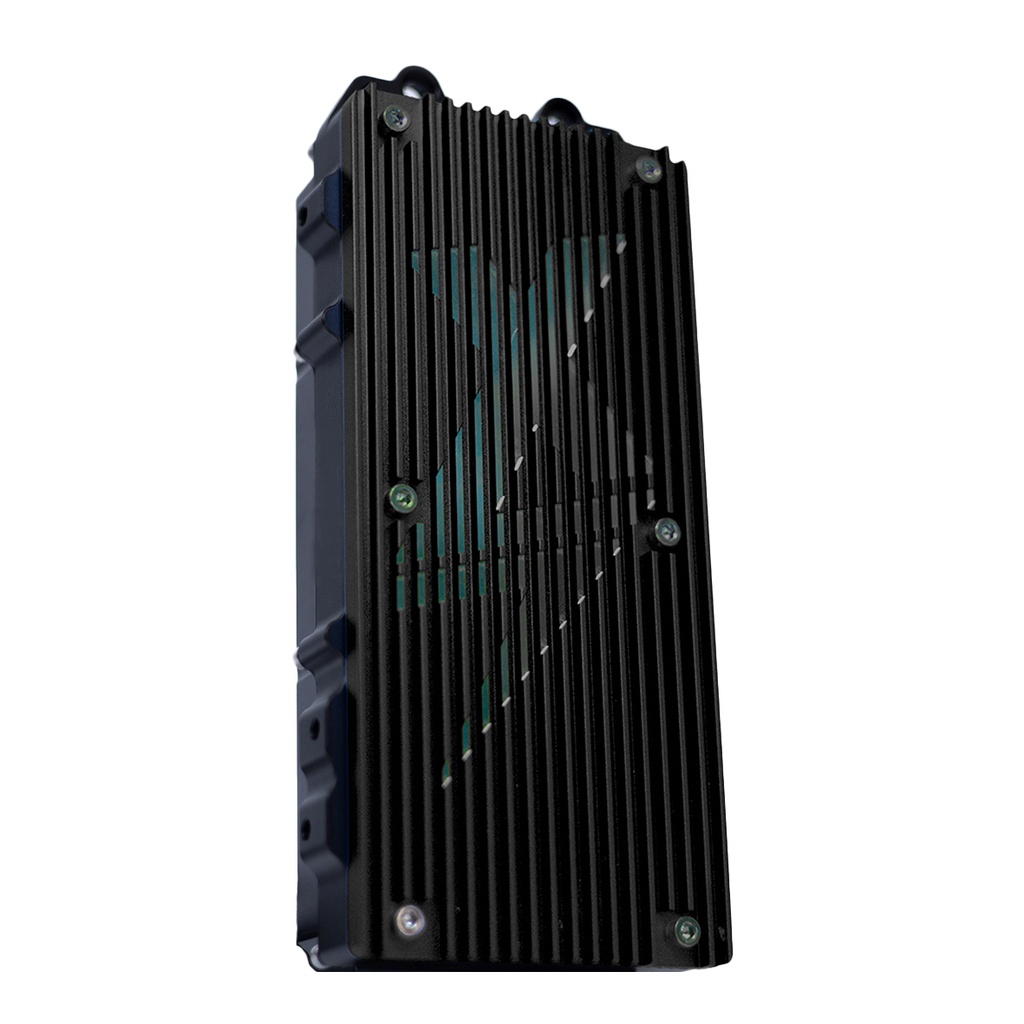

- Air-cooled heatsink as standard (comes in black, blue, red, gold or purple).
- Wiring harness connections are fully sealed and come straight out of the controller with fully waterproof IP67 rated connectors for the harnesses.
- Direct bolt in for the SurRon Light Bee and Talaria Sting bikes with no extra brackets needed, no phase wire extensions or other additional parts (harness adapter included).
- Integration with both SurRon hall-based motors and Talaria encoder motors
- SW102 (EggRider) Display included and custom firmware to allow monitoring of motor temp, controller temp along with all of the regular display info.
- Can be setup with a smart phone for the display or to check info as desired
- Super heavy-duty construction internally and externally to sustain hard riding and high-powered batteries and motors.
| EBMX X-9000 SPECIFICATIONS | |
| RATED POWER | 40kw (CONTINUOUS) |
| INPUT VOLTAGE RANGE | 40v – 100v |
| WORKING VOLTAGE RANGE | 48v – 93v (22S) |
| PHASE | 1000A (continuous) 1500A (burst) |
| MAX EFFICIENCY | >95% |
| MAX BATTERY CURRENT | 500A |
| MOTOR CONTROL PROTOCAL | Field Oriented Control |
| INTERNALS | 30 Highly Efficient MOSFETS Extra beefy CNC machined terminal and connections 12V DC-DC converter with 4 configurable outputs CANBUS Ready |
| FIRMWARE | VESC based motor control and firmware modified by EBMX |
| OPERATING TEMPERATURE RANGE | minus 25 to 80 Degrees Celsius |
| INCLUSIONS | X-9000 Controller Air Cooled Heat Sink SW102 Display Regen Thumb Throttle 2-1 Harness Harness for SurRon Light Bee Harness for Talaria MX3/MX4 |
| OPTIONAL ADDITIONS | Water cooled Heat Sink Harness and Brackets for SurRon Ultra Bee Harness and Brackets for Talaria XXX Metal Shroud for SurRon Ultra Bee Plastic Shroud for SurRon Light Bee |
| WATERPROOFING | IP67 |
| WARRANTY | 2 Years |
| HEAT SINK COLORS | Black / Red / Blue / Gold / Purple / Other limited edition |
