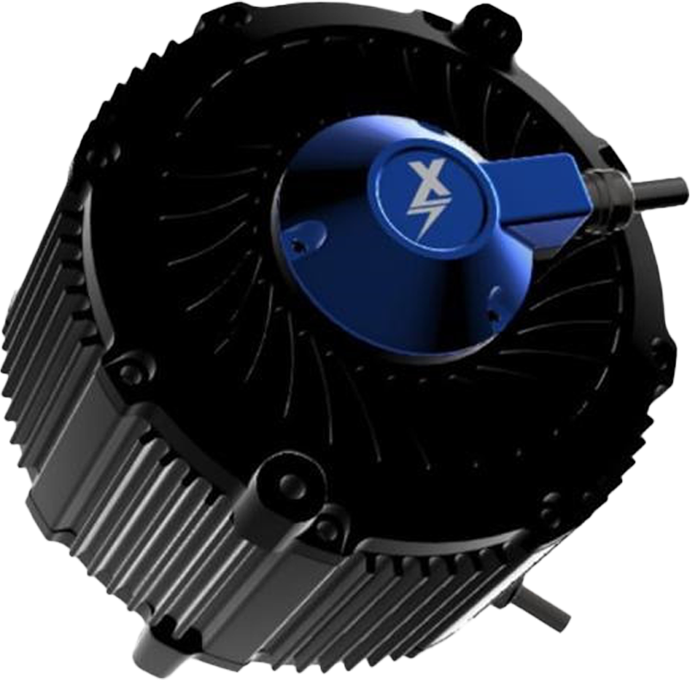

EBMX XLB-60
Light Bee Motor
The EBMX Motor range has been specifically designed to surpass the performance of other motors in this class.
We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.
The motor has encoder based control for increased low end torque response and smooth predictable power delivery.
Encoder sensors are capable of tracking motor position at all speeds and do so more frequently then hall sensors (used in other motors in this space). As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues.
- 60mm Stator thickness
- 35KW rated & designed from the ground up to handle the heat
- 180C rated windings with U24H mangets
- Custom IPM rotor design
- Industry leading 0.7mm rotor air gap revving out at 13000RPM

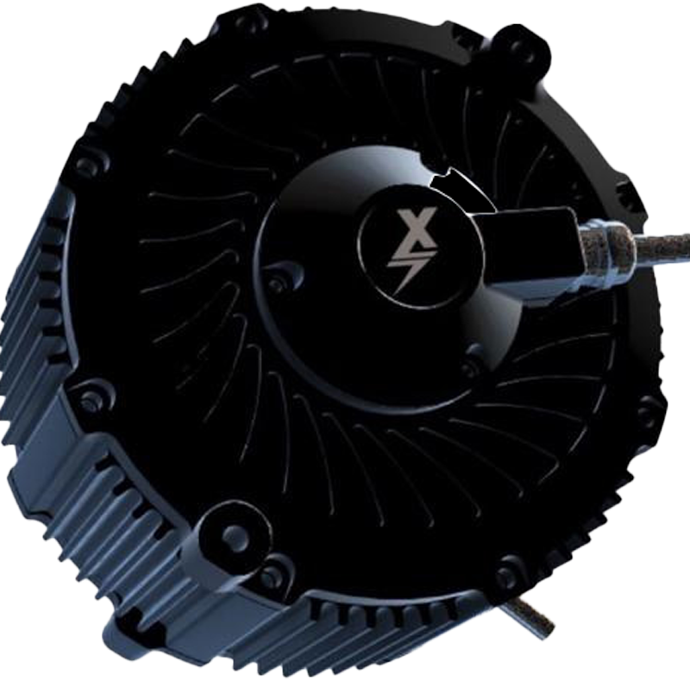

EBMX XUB-80
Ultra Bee Motor
The EBMX Motor range has been specifically designed to surpass the performance of other motors in this class.
We built these motors to stay cool under race conditions to ensure you focus on your riding and not your motor temperatures. It doesn’t matter if you are on the track, street or local trail, if you want the best, then this motor is for you.
The motor has encoder based control for increased low end torque response and smooth predictable power delivery.
Encoder sensors are capable of tracking motor position at all speeds and do so more frequently then hall sensors (used in other motors in this space). As a result they can deliver a smoother more responsive and controllable powerband and they do not generate the same type of current spikes that often cause controller issues.
- 80mm Stator thickness
- 40KW rated & designed from the ground up to handle the heat
- 180C rated windings with U24H magnets
- Custom IPM rotor design
- Industry leading 0.7mm rotor air gap revving out at 12000RPM
BROWSE PRODUCT
TECHNICAL SPECIFICATION

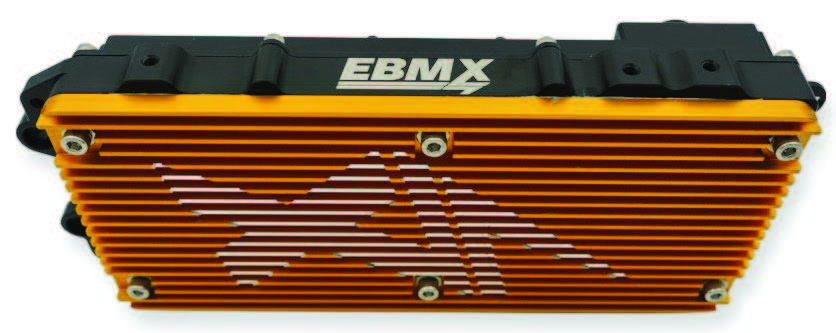

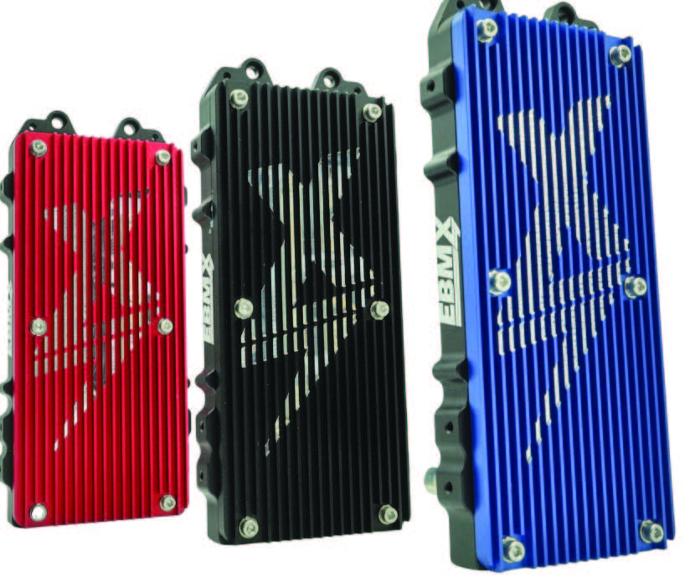

Controller Casing Features
- CNC Air Cooled Heatsink option
- Direct Factory Fit Mount for SurRon LBX and Talaria Sting

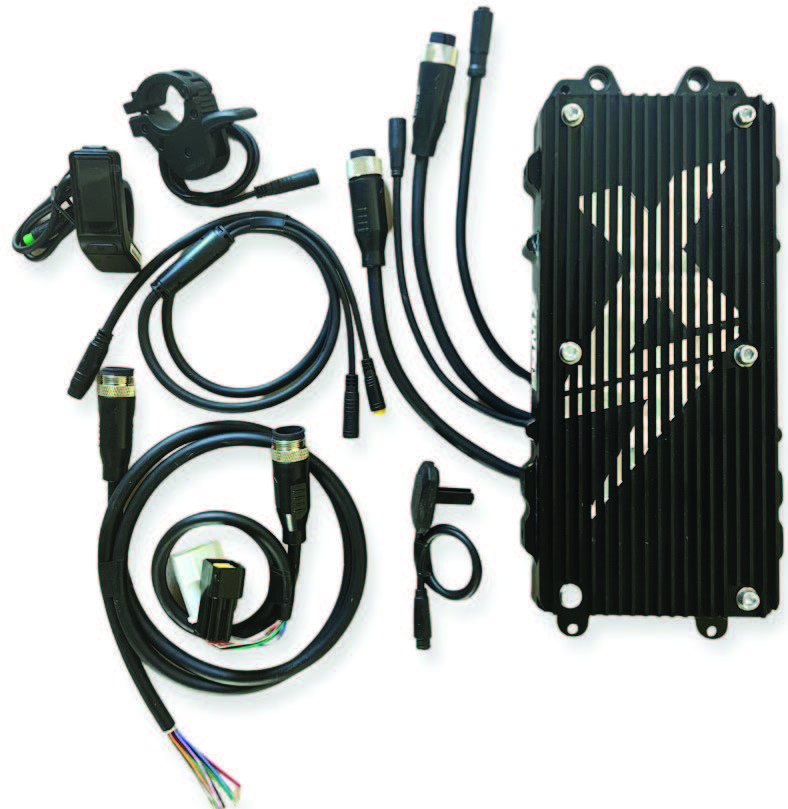

- Additional Harness and Brackets for compatibility with SurRon Ultra Bee
- Ingress Protection IP67 Rated
- 16 Pin Communications Plug (combines all types of bikes used)
- 12 Pin 12v Plug (4 programmable outputs)
- In Built Programmable DCDC Converter (12v-5A) to run any number of applications (coolant pump, lights, auxiliary features)

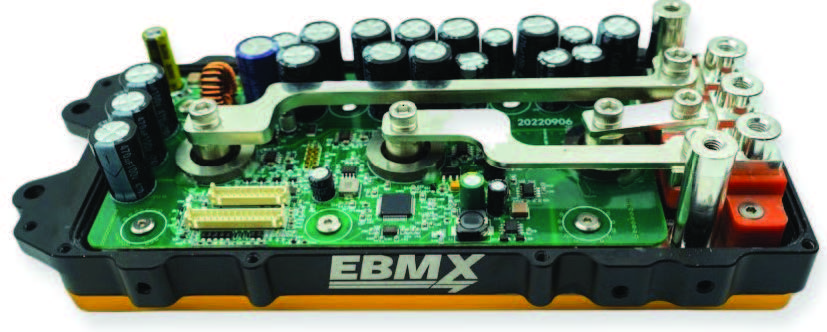

Controller Performance
- Compatible with VESC ® firmware
- Custom EBMX firmware and tune profiles
- Field Oriented Control (FOC)
- Input Voltage Range 40v - 100v
- Working Voltage Range 48v - 72v
- Max Phase Current 900A
- Max Battery Current 500A
- Peak Input Power 40kW
- Peak Output Power 35kW*
- Continuous Output Power (water cooled heat sink) 20kW*
- Continuous Output Power (air cooled heat sink) 15kW*
- Operating Temperature Range -25 to 80 Degrees Celsius
- Maximum Efficiency >95%

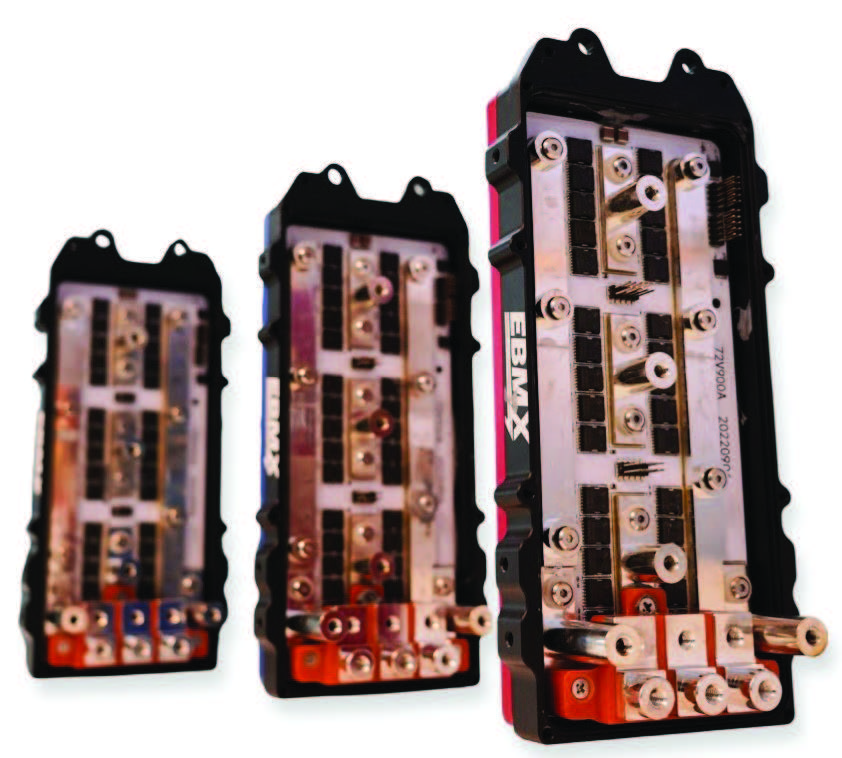

- Extra Beefy Internal CNC Machined Terminals and Connections
- To reach peak and continuous output power levels you will require a motor and battery capable of performing at this level
EBMX APP FEATURES
- Free to download
- Use as a Display with Full Dashboard (customisable)
- Street Mode (3 separate programmable power settings)
- Race Mode (3 separate programmable power settings)
- Speed Limit Settings
- Control 4 separate 12v outputs
- Power Adjustments (kW)
- Control options for thumb throttle
- Torque Adjustments (phase amps)
- Fully customisable regen settings
- Throttle Sensitivity (ramping and curve type)
- Throttle Calibration Wizard
- Motor Tune Selection
- Quick change from 48v up to 72v Battery
- Stock Tilt Sensor (on/off)
- Stock Stand Sensor (on/off)
- Gear Ratio Adjustments for accurate display speed
