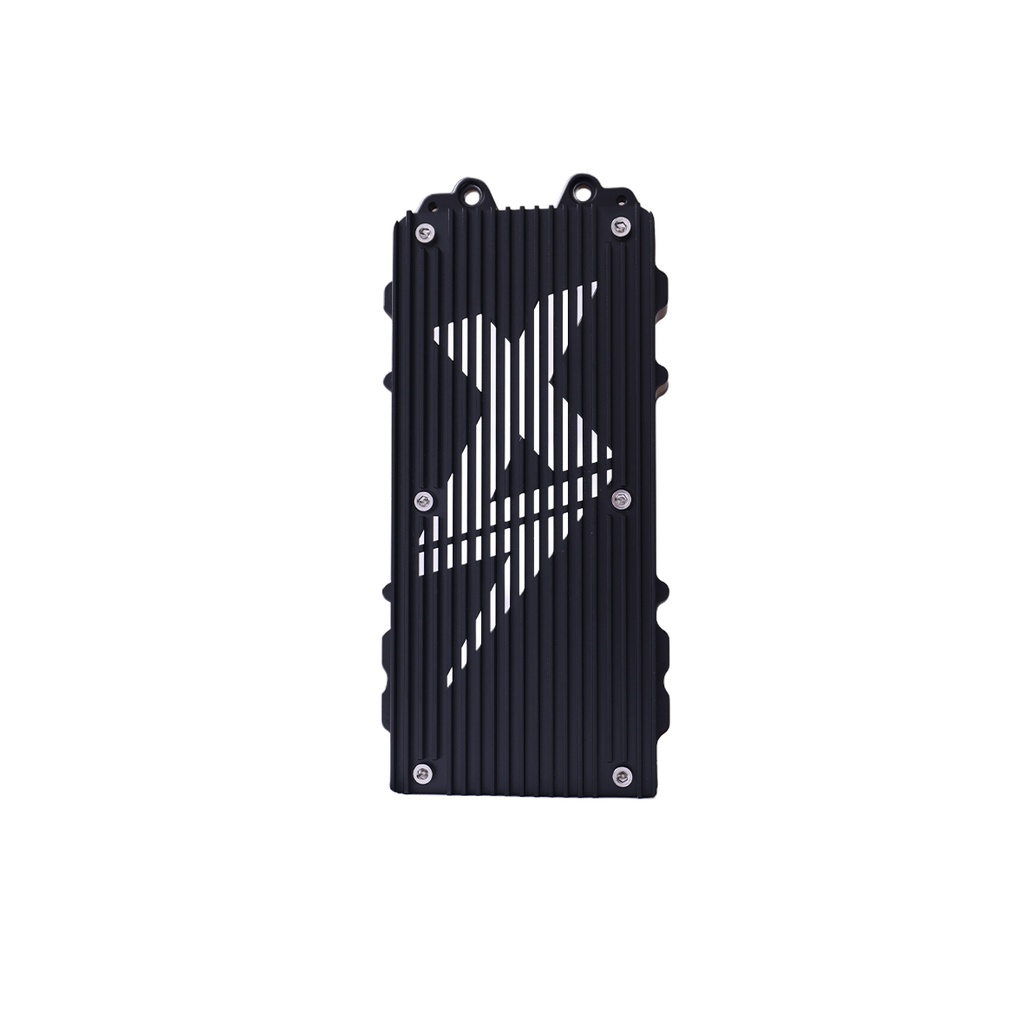

EBMX X-9000_V3 Controller Kit
Redefine Riding
Engineered for uncompromising power, control, and customization, the X-9000_V3 redefines what you can expect from your electric motorbike. Whether you are tearing up the trails, dominating urban streets or pushing limits on the track, this controller is built to push boundaries and unlock your bike's full potential.
Plug and Play kits available for:
- SurRon Light Bee
- SurRon Ultra Bee
- Talaria MX3 / MX4 / MX5
- Talaria XXX
- ERide Pro
- Rerode R1
The current list of Motors that the X-9000_V3 is compatible with is below:
- OEM SurRon Light Bee (Hall)
- OEM SurRon Ultra Bee SPM (Encoder)
- OEM SurRon Ultra bee IPM (Encoder)
- OEM SurRon Ultra bee IPM 21kW (Encoder)
- OEM Talaria Sting MX3 or before (Encoder)
- OEM Talaria Sting R MX4 (Encoder)
- OEM Talaria Sting R MX5 (Encoder)
- OEM Talaria XXX (Encoder)
- OEM E Ride Pro 2.0 (Encoder)
- OEM Eride Pro 3.0 (Encoder)
- OEM Eride SR (encoder)
- EBMX XTA-60
- EBMX XLB-60 (Encoder)
- EBMX XLB-60 RACE (Encoder)
- EBMX XUB-80 (Encoder)
- EW16ZB (Encoder)
- KO Big Block (Hall)
- KO RS (Hall)
- KO F Spec (Encoder)
- KO F Spec (Hall)
- QS138 – 90H (Hall)
- QS138 – 70H Gearbox (Hall)
- QS165 (Hall)
- Rerode R1 (Encoder)
- Sotion FW01 (Hall)
- Sotion FW01 Pro (Hall)
- Sotion FW02 (Encoder)
- Sotion FW02 (Hall)
- Sotion GTS01 (Hall)
- XEMX X4 (Encoder)
Built from the ground up for serious riders and racers, the EBMX X-9000 V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.
Power Meets Control
• 50kW Output | 1000A Phase Current | 1600A Burst
• 30 12V Infineon MOSFETs for performance and reliability under extreme conditions
• Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
• Water-Cooling Option for race-level endurance
• IP67 Rated & CNC Alloy Case – Built to take the punishment
Next Gen Logic
• Industry-Leading 68 IO Support – Runs anything, from race bikes to full featured builds
• Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
• Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
• Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability
Race-Ready, Rider Tuned
• 6 Fully Customizable Power Levels (Race + Street Modes)
• Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
• Load & Go Battery Profiles – Over 15 plug-and-play setups
• Preloaded Motor Tunes – 30+ motors supported out of the box
• One-Touch Updates – OTA firmware &
compatibility expansion
EBMX X-9000_V3 SPECIFICATIONS | |
RATED POWER | 50KW |
INPUT VOLTAGE RANGE | 40-120V |
WORKING VOLTAGE RANGE | 48-110V (26S) |
PHASE | 1000A (continuous) 1600A (BURST) |
MOTOR CONTROL PROTOCOL | Field Oriented Control (FOC) |
CONSTRUCTION | 30 120v Infineon Mosfets Full CNC Case Billet CNC Bus Bar System Interchangeable heat sinks |
FIRMWARE | VESC based motor control and firmware modified by EBMX |
OPERATING TEMPERATURE RANGE | minus 25 to 80 Degrees Celsius |
INCLUSIONS | X-9000_V3 Controller Black Air Cooled Heat Sink SW102T Display Regen Thumb Throttle 2-1 Harness (canbus) Bluetooth Module Hardware |
OPTIONAL ADDITIONS | Water Cooled Heat Sink Large Colour Display Colour Heat sink Choose the fit kit for your bike |
FEATURES | 68 IO Count Built in IMU for integrated wheel-lift control Dual hall throttle ready X-Series App compatible for custom tuning Pre tuned for stock and aftermarket batteries Tuned for 30+ motors |
WARRANTY | 2 Years |
