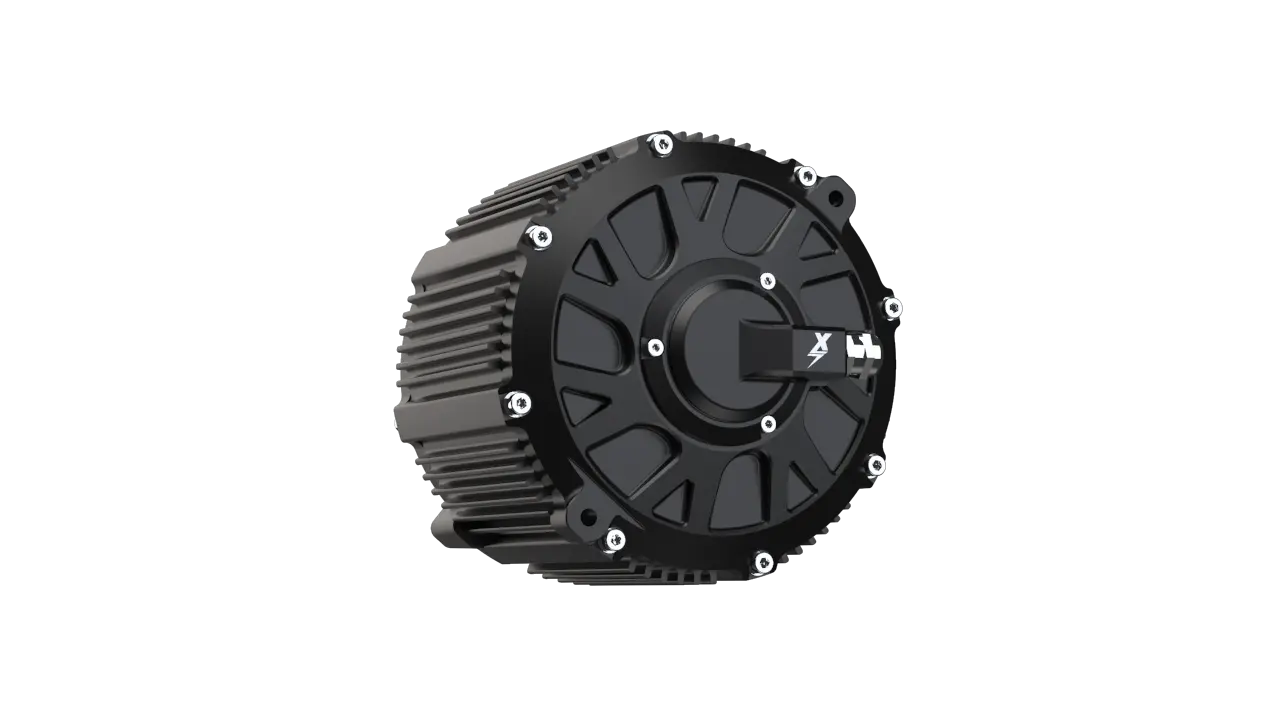

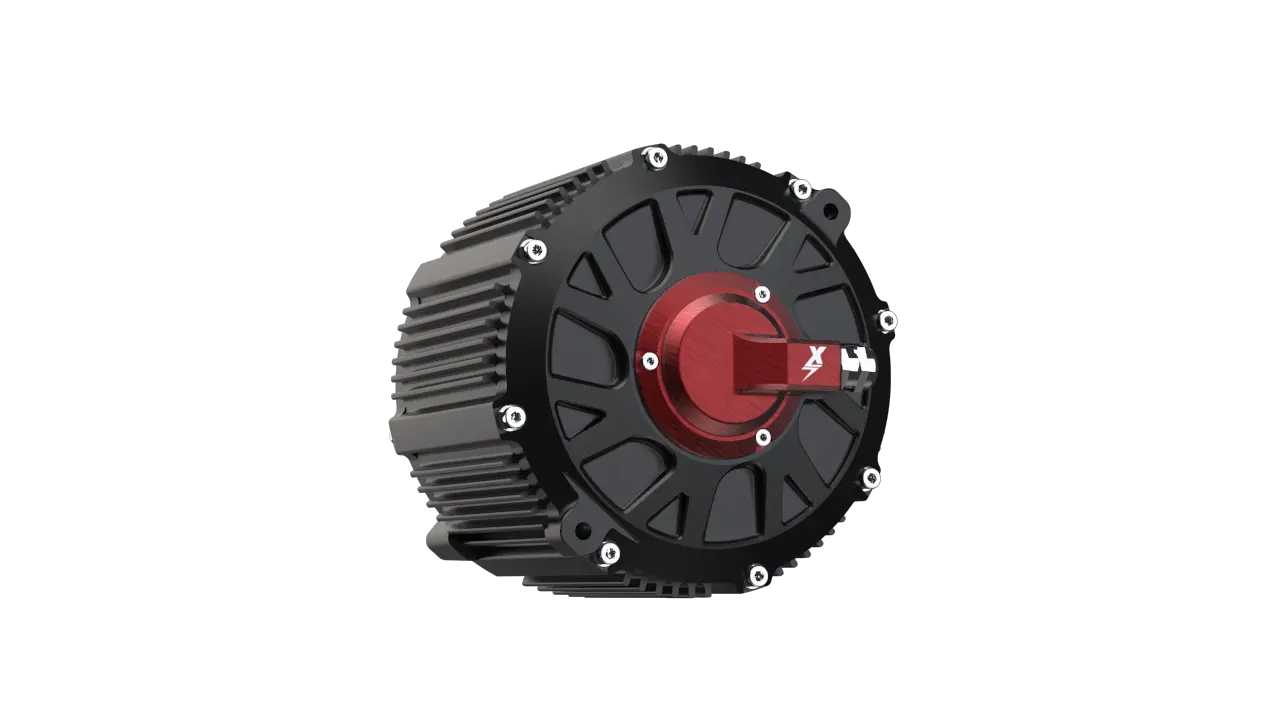

XUB-80
BY EBMX
Our new motors have been engineered for performance enthusiasts and experienced riders in controlled environments. These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.
XUB-80
BY EBMX
Our new motors have been engineered for performance enthusiasts and experienced riders in controlled environments. These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.
Surpassing Performance
Slightly bigger with an 80mm Stator thickness and more powerful than its little brother the XLB-60. 40KW rated and designed from the ground up to handle the heat, 180C rated windings with U42H magnets.

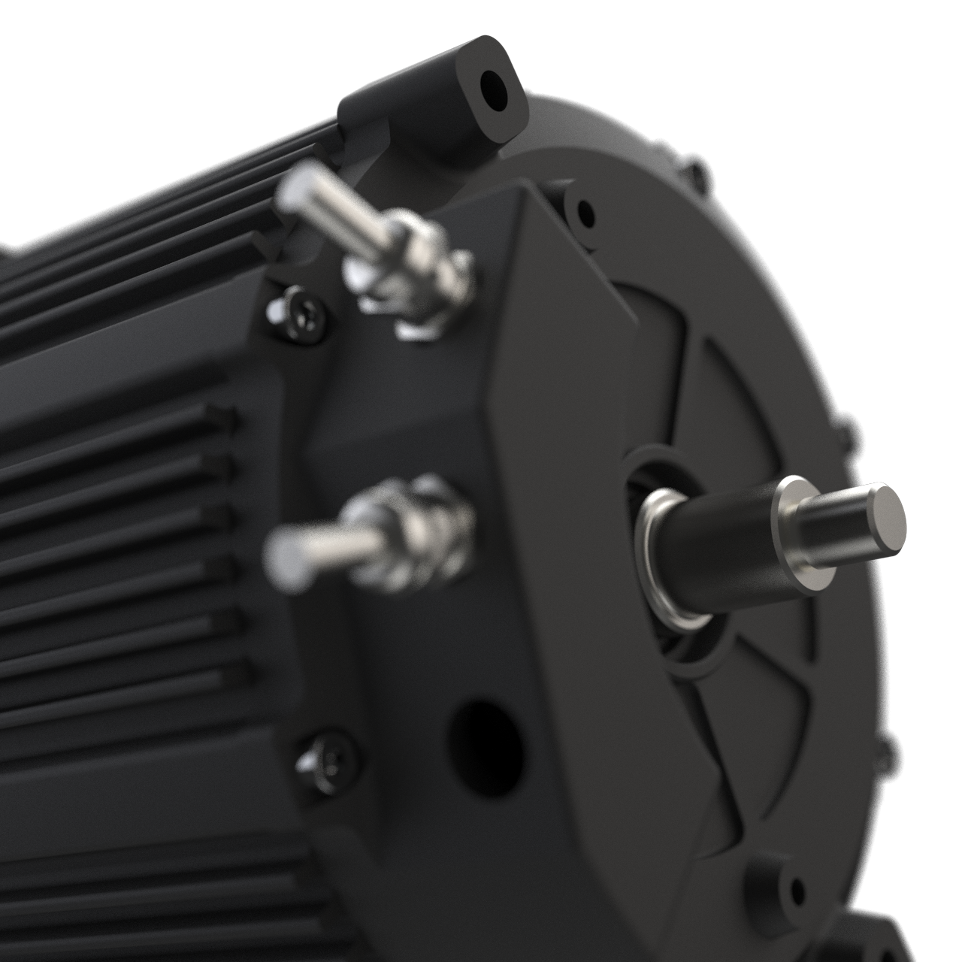

Designed from the ground up
Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 12000RPM. Encoder based motor control for increased low end torque response and smooth predictable power delivery.

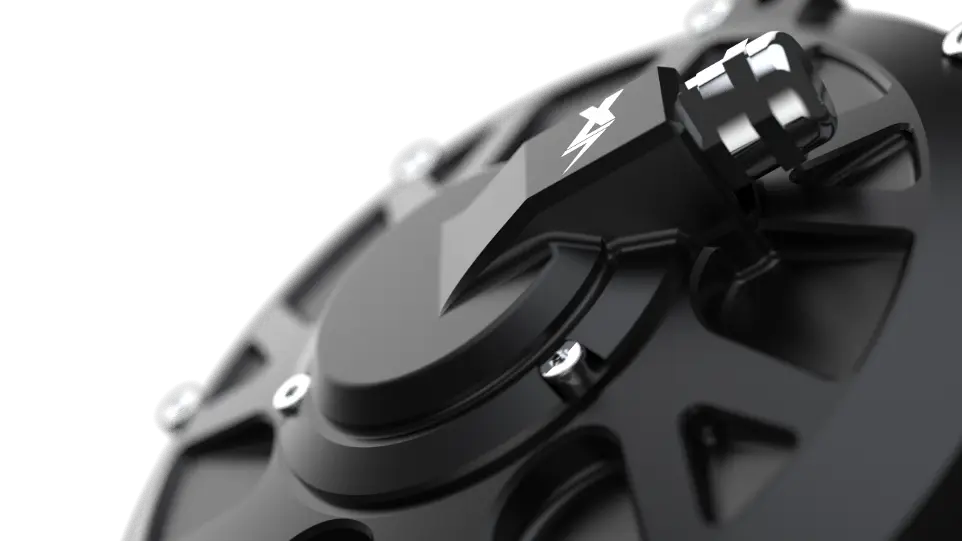

Greater stability
Encoder sensors provide superior control over hall sensors by offering precise rotor position tracking at all speeds. This translates to a smoother, more responsive powerband and reduced controller issues.
SPECIFICATIONS
MOTOR CONFIGURATION
10 poles and 12 slots
WINDING TYPE
Dual Y parallel connection
SENSING METHOD
NJDC 605 encoder
KV VALUE
85-90KV
RATED POWER (AIR COOLED)
20,500w (continuous run for 28 minutes)
32,000W (continuous run for 2 minutes 20 seconds)
52,000W (Burst 10 seconds)
RATED POWER (WATER COOLED)
30,000W (continuous run for 28 minutes)
WARRANTY
2 year

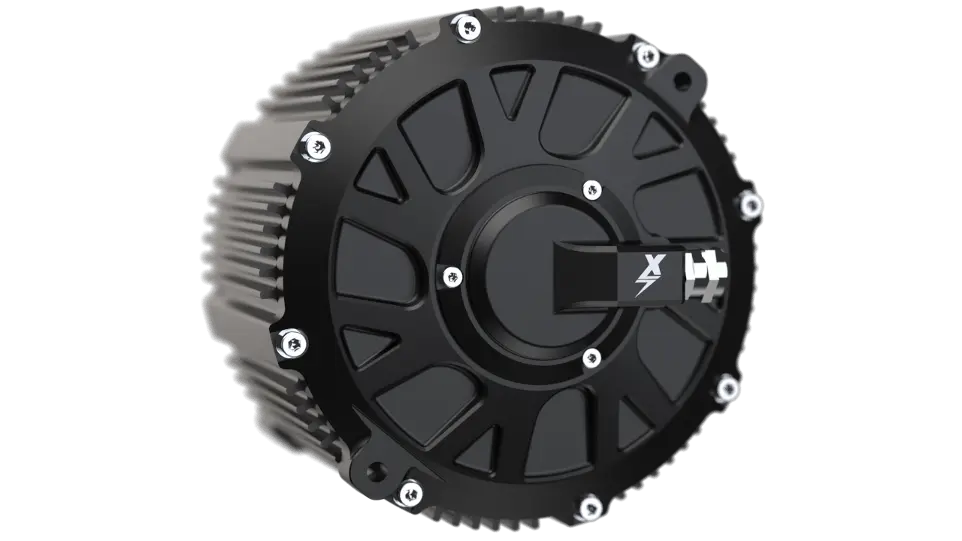

Surpassed Performance
Slightly bigger with an 80mm Stator thickness and more powerful than its little brother the XLB-60. 40KW rated & designed from the ground up to handle the heat, 180C rated windings with U42H magnets.
Designed from the ground up
Custom IPM rotor design and industry leading 1mm rotor air gap revving out to rated 12000RPM. Encoder based motor control for increased low end torque response and smooth predictable power delivery.

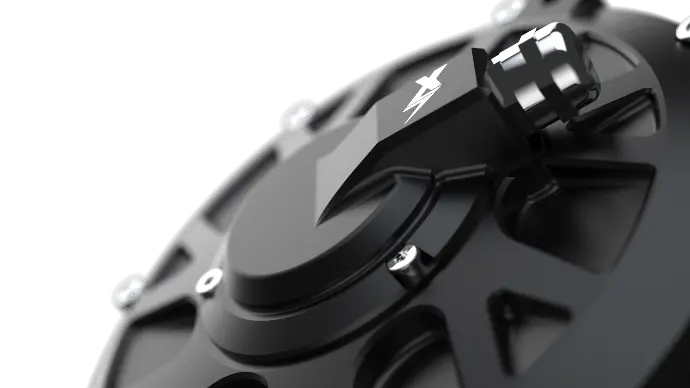

Greater stability
Encoder sensors provide superior control over hall sensors by offering precise rotor position tracking at all speeds. This translates to a smoother, more responsive powerband and reduced controller issues.
