The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.
The XLB-60 RACE edition, designed for speed and maximum RPM, this is the fastest motor on the market!
Using our EBMX rotor design we have lengthened the torque band to create a constant pulling force from 0 to 13000RPM. The XLB60 RACE is aimed at the racer, from MX to trail or even the drag strip, designed to handle the heat and bring insane levels of RPM.
The EBMX motors have been custom built and are finely tuned to work with the EBMX X-9000 controller.

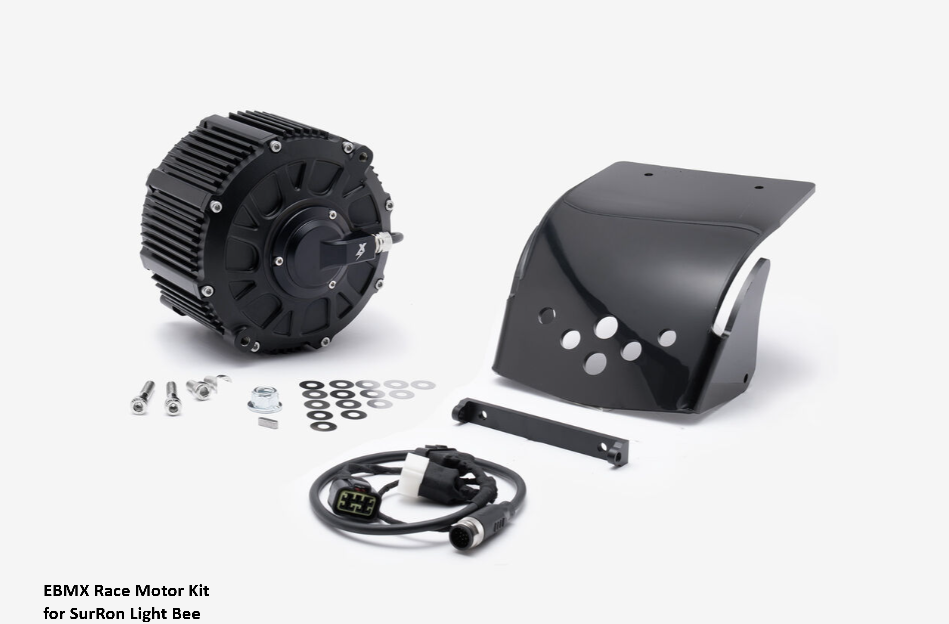

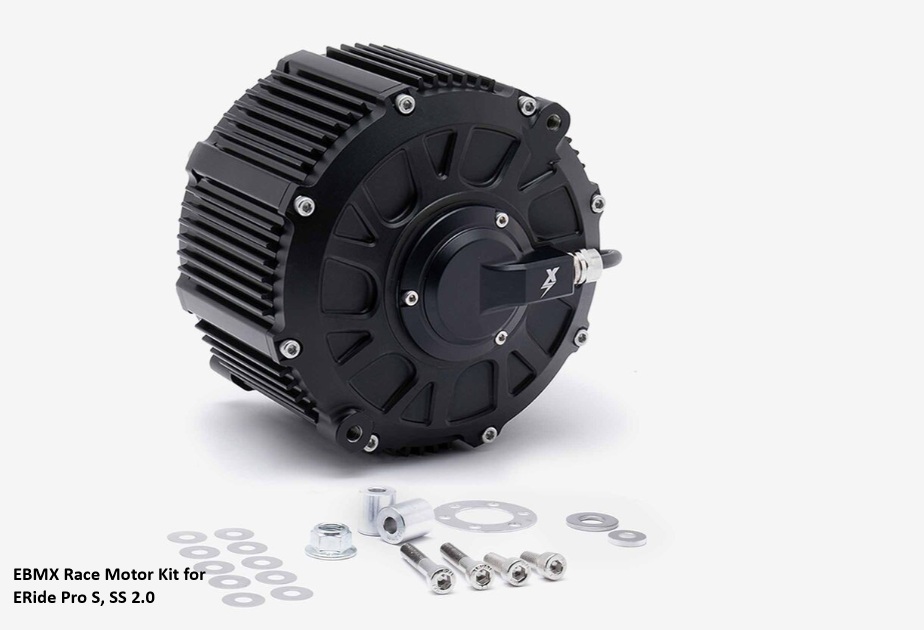

Harness and mount sets are available to use this motor with SurRon Light Bee or Eride Pro.
The motor has a larger stator that its little brother the XLB-60 going up from 60 to 65mm and a screaming 105kv wind.
More Power, More Speed, More Fun, More Savage!
Recommended Gearing:
Off Road: 18 inch 58T-64T( 75MPH top speed with 64T/72V)
Off Road: 16 inch 54-58T
Off Road 17 inch 56T - 60T
Recommend X9000 Settings on a 400Amp BMS 20S/22S:
1000 Phase / 30KW
900 Phase / 25KW
800 Phase / 20KW
Need more range? try turning field weakening to 0%. With a 64T sprocket off road riding on 21/18 wheels, 65MPH is easily achievable on a 72V battery. This can help increase range by up to 15%.
Real World Motor Testing Results
Your results may vary based on rider weight, gearing and battery performance.
85KG Rider
75KG EBMX Built Surron
64T Sprocket
1000 Phase Amps
500 DC amps
20S 72V Race Battery
Peak Power 32-34KW
22S 81V Race Battery
Peak Power 36 - 38KW
These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.
IMPORTANT SAFETY CONSIDERATIONS:
- NOT INTENDED FOR ROAD USE: EBMX Motors are NOT designed for use on public roads or crowded areas. These motors are strictly meant for off-road use and controlled environments only.
- EXPERIENCED RIDERS ONLY: These high-performance motors are recommended for experienced riders who possess the necessary skills and expertise to handle powerful machines. Novice riders are strongly advised against using our motors.
- USE WITH CAUTION: The enhanced speed and power of our motors require extreme care and attentiveness. Always exercise caution and be aware of your surroundings when operating our products.
- UPGRADE SAFETY EQUIPMENT: It is crucial to ensure that your bike is equipped with upgraded brakes and other safety features capable of handling the increased speed and power provided by our motors. Using the motor with stock brakes or inadequate safety measures may result in accidents and severe injuries.
- ADHERE TO LOCAL LAWS: Familiarise yourself with local regulations and laws pertaining to off-road vehicle usage in your area. Always ride within designated areas and private tracks that allow for safe operation.
- KEEP AWAY FROM CHILDREN: Our motors are not toys, and they must be kept out of reach of children. Never allow minors or inexperienced individuals to operate these motors.
- RIDE RESPONSIBLY: Ensure that you are in a sound state of mind and not under the influence of any substances that could impair your judgment before operating the motor.
By purchasing and using EBMX Motors products, you acknowledge and understand the inherent risks associated with high-speed off-road motor use. EBMX shall not be liable for any injuries, accidents, damages, or losses incurred as a result of improper usage, negligence, or failure to adhere to this disclaimer.
Enjoy the thrill of our motors responsibly and with safety as your utmost priority.
